How to draw an axial force diagram - Quora Answer (1 of 2): It really is simple once you understand it. Axial forces are the most simple of them all. Assuming you have solved for reaction forces, first of all choose a consistent direction to go through your beams. Let’s say we start at A and finish at … 6-12 Example: Axial Force Diagram - Internal Force ... From the lesson. Internal Force Diagrams. We will get to the most important part, which is analyzing frames and beams to calculate their internal forces and to draw axial, shear and moment diagrams. Contrary to most textbook presentations, we will adopt a notation that is universally adopted by engineers when using moment diagrams.

Calculating Shear Force Diagram | SkyCiv Engineering Calculating Shear Force Diagram - Step 2: Keep moving across the beam, stopping at every load that acts on the beam. When you get to a load, add to the Shear Force Diagram by the amount of the force. In this case we have come to a negative 20kN force, so we will minus 20kN from the existing 10kN. i.e. 10kN - 20kN = -10kN.

How to draw axial force diagram

Lecture 26: Axial, Shear and Bending Diagrams ... Next, the video demonstrates how to draw axial force diagram from the drawn FBD and later elaborates briefly the drawing of shear force and bending moment diagrams highlighting the max shear and moment conditions. Finally, the video gives a quick summary of the lesson described in this video. The Ultimate Guide to Shear and Moment Diagrams ... 4.0 Building Shear and Moment Diagrams. In the last section we worked out how to evaluate the internal shear force and bending moment at a discrete location using imaginary cuts. But to draw a shear force and bending moment diagram, we need to know how these values change across the structure. Axial force diagram 10.01.03.025 - SlideShare 01/10/2003 · Determine the axial forces transmitted by transverse cross sections in intervals AB, BC, and CD of the bar. Draw an axial force diagram for the bar. 6. Drawn the axial force diagram.All of the forces are in tension. 7. AFD OF THE BEAMS LOADED AXIALLY BY THE CONCENTRATED LOADS Simply Supported Beam 8. CANTILEVER BEAM 9.

How to draw axial force diagram. Lecture 62: Axial Force Diagram, Shear Force Diagram ... This video briefly demonstrates the actions of internal loading of a structure followed by indicating bending moment diagrams (BMD), shear force diagrams (SFD) & axial force diagrams (AFD). When any structure is exposed to a loading, the loads are transferred from the point of action through the structural elements down to the base and/or supports. Definition of Axial Force Diagram | Chegg.com Nature of diagram: • At the point of action of force, the diagram changes abruptly. • The force acts always along the length of the structure. • The sign convention is very simple, if one direction is taken as positive, then the other is negative. • The nature of forces is compressive or tensile only. Example problem to draw axial force ... Axial, Shear & Moment Diagrams - StructNotes Axial, shear, and bending moment diagrams (AFD, SFD, and BMD) show the internal forces and moments along a structural member. They help determine the material, size, and type of a member given a set of loads it can support without structural failure. Keeping a consistent sign convention is extremely important! We are going to define the positive… PDF Structural Axial, Shear and Bending Moments Axial Force, Shear Force and Bending Moment Diagrams for Plane Frames Previous definitions developed for shear forces and bending moments are valid for both beam and frame structures. However, application of these definitions, developed for a horizontal beam, to a frame structure will require some adjustments.

How To Draw Shear Force And Bending Moment Diagram For ... Draw the normal shear shear force and bending moment diagrams 6 draw shear force axial draw the normal force shear and. 21 B Example 18 For The Given Frame In 22 A Draw Normal Shear Scientific Diagram. A Draw The Normal Force Shear And Bending Moment Diagrams For Shown Frame Is Pin Hinged Connected At C D There Rigid Joint. HOW TO DRAW AXIAL FORCE DIAGRAM /AXIAL LOAD DIAGRAM … 19/08/2021 · What is Cross section, What is Axial Force and Shear Force. What is Axial Load /Axial Force Diagram/ Axial Thrust Diagram, How to Draw Axial Load /Axial Forc... How to draw an axial force diagram - Quora Answer (1 of 2): It really is simple once you understand it. Axial forces are the most simple of them all. Assuming you have solved for reaction forces, first of all choose a consistent direction to go through your beams. Let's say we start at A and finish at E. For every beam segment, look at t... Does axial force affect the shear force diagram? - Quora Answer (1 of 2): The short answer is: No. While the moment and shear diagrams are intricately connected (the moment diagram is the integral of the shear diagram), in general, the axial force diagram has no effect on them. The long answer is: It depends on the situation. What you have to realize ...

PRESENTATION OF AXIAL FORCE DIAGRAM by 10.01.03.132 WHY AXIAL FORCE DIAGRAM IS IMPORTANT? The challenge with a member is that the internal forces can vary a greatly along the length. So, the diagram is drawn. • The diagram shows the internal forces along the length of the structure. This helps to visualize where the maximum stresses will occur due to axial force or axial loading. Answered: 1. Draw the axial force diagram 2.… | bartleby Draw the axial force diagram 2. Write down the governing equations 3. State the boundary conditions 4. Solve the equations for the axial displacement. Question. thumb_up 100%. Transcribed Image Text: A, A A.=-글순 ·x+ 들A E 1. Draw the axial force diagram 2. Write down the governing equations 3. Shear Force and bending moment diagram - ExtruDesign Steps to draw Shear force and Bending moment diagrams. In SFD and BMD diagrams Shear force or Bending moment represents the ordinates, and the Length of the beam represents the abscissa. Consider the left or the right portion of the section. Add the forces (including reactions) normal to the beam on the one of the portion. Mechanics Map - Axial Force Diagrams and Torque Diagrams Axial Force Diagrams and Torque Diagrams. As an alternative to splitting a body in half and performing an equilibrium analysis to find the internal forces and moments, we can also use graphical approaches to plot out these internal forces and moments over the length of the body. Where equilibrium analysis is the most straightforward approach to finding the internal forces and moments at one ...

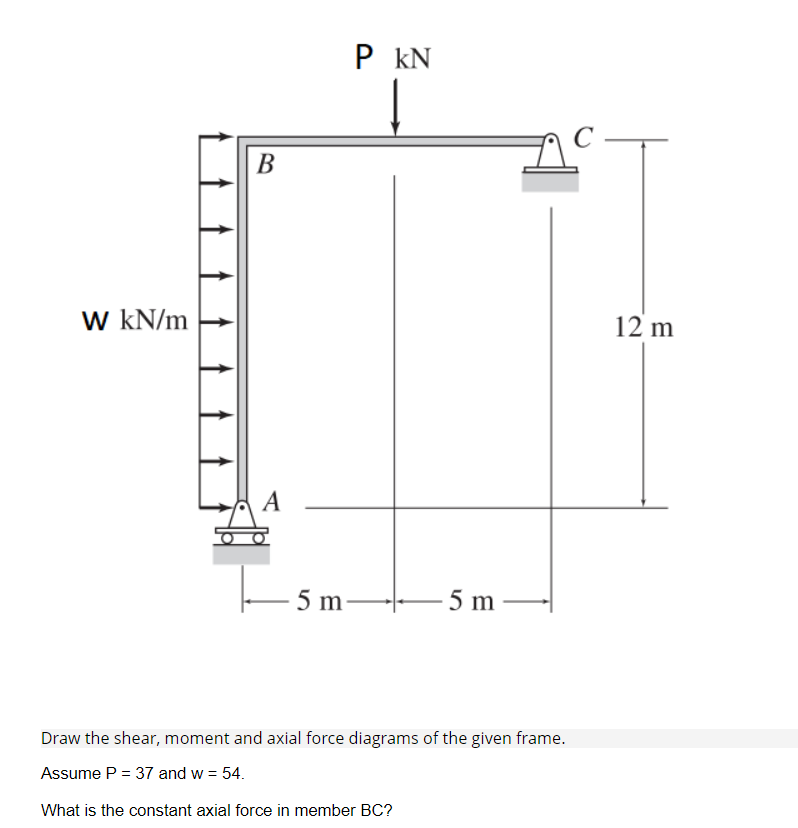

Solved: 5. Draw the shear, bending moment, axial force di

BEAMGURU.COM - Beam Calculator and Frame/Truss Beam ... BEAMGURU.COM is a online calculator that generates Bending Moment Diagrams (BMD) and Shear Force Diagrams (SFD), Axial Force Diagrams (AFD) for any statically determinate (most simply supported and cantilever beams) and statically indeterminate beams, frames and trusses.The calculator is fully customisable to suit most beams, frames and trusses; which is a feature unavailable on most other ...

Solved Draw axial force, shear force and bending moment ...

Drawing Free-Body Diagrams - Physics Classroom Drawing Free-Body Diagrams. Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation. A free-body diagram is a special example of the vector diagrams that were discussed in an earlier unit. These diagrams will be used throughout our study of physics.

2.2 - Axial Force Diagram (Sections) (Ex 2.2 - Part I)

How to draw force diagrams Statics Reactions - Engineering ... Show activity on this post. The 200 lbs load will produce a vertical load of 200 lbs on joint "B" along with a clockwise moment 1000 lbs-in moment. Since there is no horizontal load in the system, if the deformation is ignored, you can treat A-B-E as a rigid body that resists the load, and solve the reactions at A & E through simple static.

Solved For the frame structure below draw ：1.Axial Force ...

Solved How to draw axial force diagram ? | Chegg.com Question: How to draw axial force diagram ? This problem has been solved! See the answer See the answer See the answer done loading. How to draw axial force diagram ? Expert Answer. Who are the experts? Experts are tested by Chegg as specialists in their subject area. We review their content and use your feedback to keep the quality high.

Solved] Q1) Draw the axial force, shear force and bending ...

6-11 Rules of Axial Force Diagram - Internal Force ... Internal Force Diagrams. We will get to the most important part, which is analyzing frames and beams to calculate their internal forces and to draw axial, shear and moment diagrams. Contrary to most textbook presentations, we will adopt a notation that is universally adopted by engineers when using moment diagrams.

Answered: By area summation approach, draw axial… | bartleby

Internal Forces: Shear and moment equations and their diagrams Perpendicular loads on a beam affect only the shear force and bending moment within the beam, not the axial force In this case, axial force is zero anywhere along the beam. The functions and and their diagrams (graphs or plots) provide powerful tools for evaluating the values and variations of the shear force and bending moment at any point.

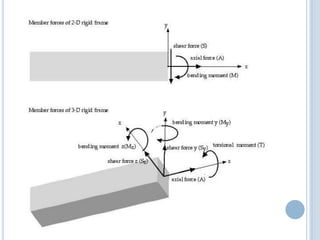

Axial force diagram 10.01.03.025

Axial Force, Shear Force and Bending Momemt Diagram ... for more FREE video tutorials covering Mechanics of Solids and Structural MechanicsThis video shows a workout on a comprehensive example...

Use the Slope-Deflection Method to analyse the structure of ...

Draw an Axial Load Diagram - YouTube About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy & Safety How YouTube works Test new features Press Copyright Contact us Creators ...

Determining the Shear Force and Bending Moment Equations of ...

PDF Structural Axial, Shear P and Bending Moments V M Calculate and draw the axial force, shear force and bending moment equations for the given frame structure. 30 Two-Dimensional Force Transformations x y r Px Py Pn Pt FT (b) FT (a) FT = Force Transformation 31 Suppose you are given the forces in FT (a) and you wish to transform these forces into Pn (normal) and Pt (tangential) as shown in FT (b ...

Axial force diagram 10.01.03.025

Draw the shear, bending moment, and axial force diagrams ... Axial Force Diagrams From the free-body diagram of member AB in Fig. 5.21(d), we observe that the axial force throughout the length of this member is compressive, with a constant magnitude of 18 k. Therefore, the axial force diagram for this member is a straight line parallel to the x axis at a value of -18 k , as shown in Fig. 5.21(g).

Solved Question 2: Draw free body diagrams, axial force ...

ASM Example 2 - StructNotes << Back to Axial, Shear, & Moment Diagrams Step 1: Find the support reaction forces/moments. We should always begin by drawing the free body diagram (FBD). Knowing all the externally applied forces and moments, we can determine the reactions at the supports by summing the forces and moments. The hinge acts like a pin, so in this…

Solved Q2 Find the support reactions, draw the axial force ...

Beam Calculator Online (Calculate the reactions, Draws ... Setting the bending diagrams of beam. Calculate the reactions at the supports of a beam. Bending moment diagram (BMD) Shear force diagram (SFD) Axial force diagram. Invert Diagram of Moment (BMD) - Moment is positive, when tension at the bottom of the beam.

2.2 Axial Force Diagram (Reactions) (Ex 2.2 - Part 0)

38 how to draw axial force diagram - Wiring Diagrams Manual How to draw axial force diagram. Mechanics Map - Axial Force Diagrams and Torque Diagrams To create the axial force plot for a body, we will use the following process. Solve for all external forces acting on the body. Draw out a free body diagram of the body horizontally. In the case of vertical structures, rotate the body so that it sits ...

Axial force diagram 10.01.03.025

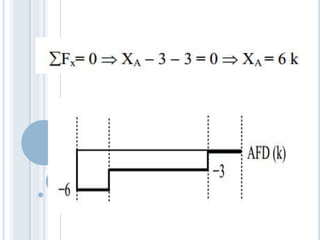

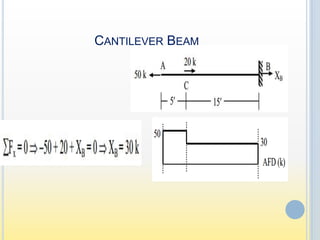

Axial force diagram 10.01.03.025 - SlideShare 01/10/2003 · Determine the axial forces transmitted by transverse cross sections in intervals AB, BC, and CD of the bar. Draw an axial force diagram for the bar. 6. Drawn the axial force diagram.All of the forces are in tension. 7. AFD OF THE BEAMS LOADED AXIALLY BY THE CONCENTRATED LOADS Simply Supported Beam 8. CANTILEVER BEAM 9.

Solved Draw axial force, shear force and bending moment ...

The Ultimate Guide to Shear and Moment Diagrams ... 4.0 Building Shear and Moment Diagrams. In the last section we worked out how to evaluate the internal shear force and bending moment at a discrete location using imaginary cuts. But to draw a shear force and bending moment diagram, we need to know how these values change across the structure.
