Since 1955 Stebel® designs and produces only horns to please anyone who has these requirements. STEBEL®, TRULY MADE IN ITALY! BEWARE OF IMITATION! PROFILE: PRODUCTION SYSTEM: PRODUCTS: WARRANTY: How to make a wiring kit for the Stebel Nautilus Air Horn.Stebel Nautilus Wiring Kit Parts List:14 AWG Wire18 AWG Wire20 AMP Inline Fuse20 AMP Fuse (Make sur...

the Wires were the right length to mount the Stebel Nautilus Compact Twin Air Horn i also bought, but only if i mounted the horn where my old horn was. My Bike is a 2012 Heritage soft tail classic. Wires were easy to run using the existing conduit under my gas tank, I ran a fisher wire and taped the kits wires to it and fished it through the ...

Stebel nautilus air horn wiring diagram

DIY: Stebel Nautilus Air Horn. Nathaniel Salzman — August 14, 2008. If you've never heard the Stebel Nautilus horn in person, it's difficult to describe. "Loud" is insufficient. Sure it is loud - very loud at 148 db. The two-note tone created by the Nautilus could better be described as "piercing" or even "pseudo-deaffoning.". Here is a horn wiring diagram. Three train horns on the tree and an air compressor on the luggage rack. Im using a Stebel Nautilus, plenty loud I think.Find great deals on eBay for stebel nautilus motorcycle air horn. Shop with confidence. Jan 28, · A relay solves this problem. The horn switch activates the relay, and the relay circuit closes ... Please Note: The beginning of the video is how to wire the horn and how it works, so you can put on anything, or in anything like a bookbag or a box. The s...

Stebel nautilus air horn wiring diagram. Installation manual for the Stebel Nautilus series, Wolo Bad boy, Wolo Truck horn, VM2, NM2, GP series, Power House chrome dual trumpet, Bandido dual tone air horn, MC Airsplitter Dual Tone Air Horn www.valkmotive.com. Modern Vespa : Tutorial: Installing a Stebel Airhorn on a GTV. modernvespa.com. Electrical Switch And Outlet Wiring. A relay solves this problem. The horn switch activates the relay, and the relay circuit closes to power the horn. When I ordered my Stebel Nautilus Air Horn, the relay was included, as well as a basic wiring diagram. Also I used black shrink wrap on any exposed wires going to the horn, and simply used small black zip ties to attach it. There is a space on the left side of the RT under the fascia trim which turns out to be perfect for mounting a 139dB Stebel Nautilus Dual-tone Air Horn. For reasons not explained, the manufacturer would like the Nautilus to stand vertical side-to-side and fore-and-aft. The space I've chosen for this will acommodate the Nautilus as near perfectly upright as makes no difference! Stebel Nautilus how-to (with pictures) I've been hanging around this site for long enough to start feeling guilty about finally getting something back to the community. Stebel Nautilus is a compact air-horn with a claimed loudness of 139dB. When you read a fine print on the box, you will find out that the 139dB value is measured at 4 inches ...

Horn Relay Wiring Mgb Gt Forum Mg Experience Forums The. 12v horn wiring harness relay kit automotive horns gtsparkplugs stebel nautilus 4 pin diagram how to wire a for on mgb universal 1pc car 80a upgrading your stock motorcycle interrupt kzrider forum fjr owners metal 3 ह र न train switch the magic of circuit route air electrical auto parts mah 124 gt mg 12 volt fits 46 71 jeep do i ... one thing this diagram doesn't show that it should is a fuse on the wire from the battery. it should always have a fuse attached to it, and put it on the wire so it is as close to the battery as possible.reason for this is so if you put the fuse at the end of the wire nearest the horn and the wire breaks before the fuse, you will have a live ... Mounting a Stebel Nautilus Air Horn on the RT. There is a space on the left side of the RT under the fascia trim which turns out to be perfect for mounting a 139dB Stebel Nautilus Dual-tone Air Horn. For reasons not explained, the manufacturer would like the Nautilus to stand vertical side-to-side and fore-and-aft. It was time for a bigger, better horn. Scouring the internet I soon found the Stebel Nautilus air horn. It seems to come in varying types at varying prices from £25 - £129.99, some shiny chrome some bright red and some chinese. There are some other options altogether but none of them came with the promise of 139db.

Here's another way to mount them up also and is pretty simple and straight forward. Seperate horn and compressor as normal, mount horn in old horn mounting spot with a simple straight bracket and place compressor under right hand dash panel in the small space between ram air duct and turn signal pod. The following are step by step photos of my installation of a Stebel Nautilus Compact Dual-Tone Air Horn on my Vespa LX 150. These instructions are for informational use only. If you break something, don't blame me. Here is a gallery of the images in various sizes, in case you want to see the original huge (2.5 MB) image. I wanted the Stebel Nautilus installed on my 2011 Cross Roads. I almost given up on the install, and started looking for another electrical horn to simply replace the factory horn, as I was reluctant to have the air horn exposed. I did not want it to be seen, and I did want it to be as far away as possible from the headers or engine. Hey gang, I ordered the Stebel Mini-Nautilus air horn and I am planning on doing the install following 8-Ball's lead. The one thing I am not sure of is getting it and the relay wired up. I didn't purchase the wiring kit, I'm assuming a trip to RS will take care of the needed supplies. I'm not...

Given that you're going to be installing this horn, with its built-in air compressor, in place of a reedy little piezoelectric speaker, you'll want the chance to run a lot more current through it than that wimpy wire will put out. Stebel includes a 12V automotive relay and a wiring diagram on the back that may have greatly suffered in transit.

The Stebel Nautilus Truck Horn is the ultimate compact electric horn and makes a great addition to any vehicle that is limited on install space. This horn features a powerful direct-drive mini-compressor, paired with a patented trumpet design that produces insane sound from a very small package.

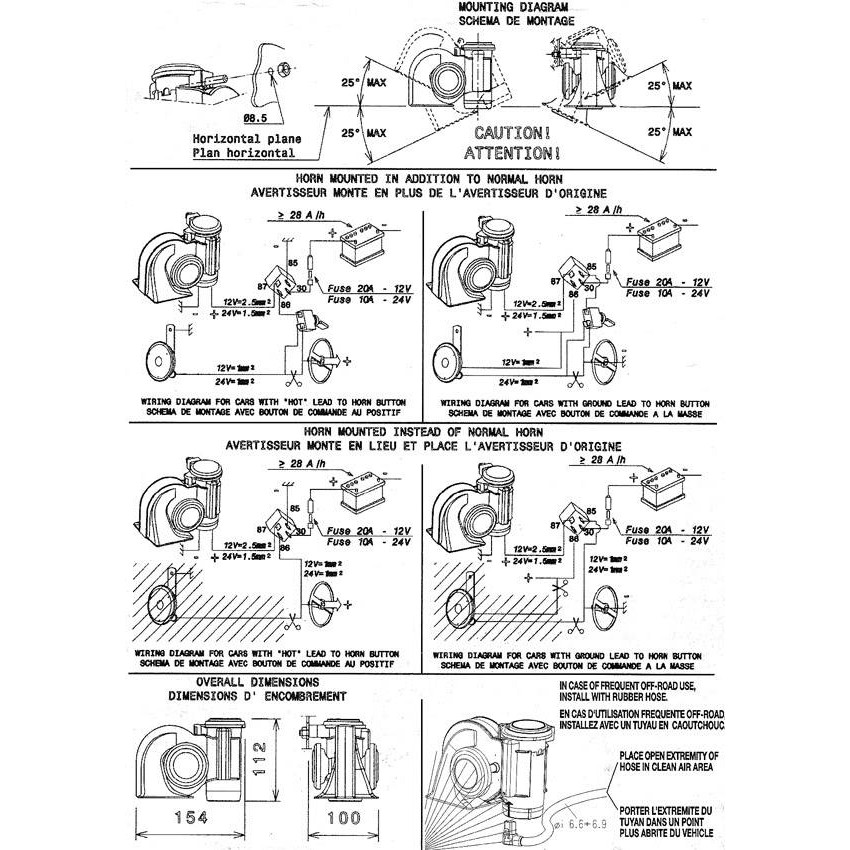

The stock horn gets all the power it needs straight from the horn button. The Stebel horn is a serious horn. It needs power straight from the battery. When in operation it draws close to 20 amps. It needs its own fuse (I use a 25A fuse). Here's wiring diagram that I made for the installation.

As a complete noob to such work, my biggest obstacle was to find or create a wiring diagram that clearly spelled everything out in an idiot-proof manner. I got a lot of help from a variety of sources, but still found myself having to guess or experiment to some degree as I went along. ... stalling-stebel-nautilus-horn-part-2-3-a.html ...

By default, the Stebel Nautilus is not supplied with any wiring, but many sellers will bundle it with all you need, just double-check. Wiring diagrams are also supplied for wiring the Nautilus in parallel with an existing horn if you so desire. And here it is, the finished horn all fitted.

I ordered the Stebel nautilus horn with this wiring harness to upgrade my stock horn on my 2007 Honda Shadow Spirit VT750C2 and it was such an easy install. You will need some basic knowledge to remove your gas tank in order to hide the wires along the existing wiring harness but if you have basic tools and common sense it's idiot proof.
