In the water tube boiler, boiler feed water flows through the pipes into the drum. The circulated water is heated by the combustion gas to form steam in the steam area in the drum. This boiler is chosen if the steam demand and steam pressure are very high as in the case of a boiler for power plants. 1. Water Tube Boilers  In this type of boiler water passes through the tubes while the gases remain in the shell side, passing over the tube surfaces • Used for high steam demand and pressure requirements • Capacity range of 4,000 - 120,000 kg/hour.

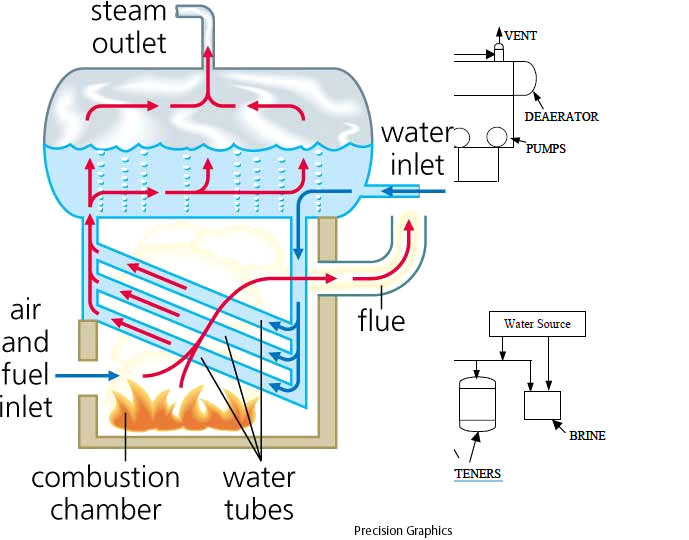

A water tube boiler is such kind of boiler where the water is heated inside tubes and the hot gasses surround them. Let us draw a very basic diagram of water tube boiler. It consists of mainly two drums; one is upper drum called steam drum other is lower drum called mud drum.

Water tube boiler diagram

Difference between Water Tube Boiler and Fire Tube Boiler Apart from water, boiler mountings and boiler accessories are also present which increases the efficiency of the boiler which are explained below. Construction, Operation of water tube boiler. The Babcock and Wilcox boiler is also is known as Longitudinal Drum Boiler or Horizontal It is probably the first water tube boiler designed and widely used across the globe. A schematic of the Babcock and Wilcox boiler is shown in the figure below. Water-tube package boiler under construction. ƒ All large and many intermediate-sized boilers are water-tube boiler with a boiler section that consists of closely-spaced water tubes covering the furnace wall.

Water tube boiler diagram. Fire Tube Boiler. 1. The water flows inside the tube and the hot combustion gases flows outside the tube. Other advantages of fire tube boilers are that they have compact size and have the ability to handle the fluctuations in steam demand more efficiently. Jul 03, 2017 · water tube boiler diagram | An Industrial Boiler Provider. Water-tube boiler – Wikipedia, the free encyclopedia A watertube boiler (also spelled water-tube and water tube) is a type of boiler in which water circulates in tubes heated externally by the fire. JiaThis – … ，，、、！ Operation … SCOTCH MARINE FIRETUBE STEAM BOILER MANUAL File:Water tube boiler-en.svg is a vector version of this file. It should be used in place of this PNG file when not inferior. Schematic diagram of a water-tube marine-type boiler, drawn using XaraXtreme by Emoscopes 14:26, 10 February 2006 (UTC). Boiler diagram. Fire tube boiler. Hot flue gases flow inside tubes that are submerged in water within a shell. • Pressures up to about 10 bar • Produce up to 14 tonnes of steam/hr • Can meet wide and sudden load fluctuations because of large water volumes • Usually rated in HP.

The examples of water tube boilers are a La-Mont boiler, Benson boiler, Stirling boiler, Babcock and Wilcox boiler, Yarrow boiler and Loeffler boiler. Treatment of feed water is very essential in a water tube boiler as small-scale deposits inside the tube can cause overheating and bursting. Package boilers- Parts, Working, Diagram, types, Advantages, Disadvantages. The packaged boiler is so-called because it comes as a complete package. Once delivered to a site, it requires only the steam, water pipework, fuel supply, and electrical connections to be made to become operational. Water Tube boiler example: Benson Boiler Lamont Boiler Babcock and Wilcox Boiler Lamont Boiler Loeffler boiler and Yarrow boiler. The fire-tube boiler is bulky and difficult to transport. But. These (Water Tube Boiler) are light in weight, hence transportation is not a problem. Water-tube boilers are used for high-pressure boilers. Fuel is burned inside the furnace, creating hot gas which heats up water in the steam-generating tubes. This is the most common type of small-medium sized boilers, similar to the one shown in the schematic diagram.

A Water Tube Boiler is a High pressure Steam Generating Boiler Used for the Rotation of Turbine In Power Plant for the Production of Electrical Energy. This boiling of water is classified into different to the machine. The steam from the boiler in turn rotates a turbine such that it drives a generator. Water-tube boiler pressure parts shall be designed in accordance with the requirements of EN 12952-3. The resulting designs shall be reproduced in the form of approved drawings and specifications to ensure the proper application of the design requirements during the manufacturing and inspection... In water tube boiler systems, the water to be heated is enclosed inside the boiler tubes whereas the hot combustion gases exhausted by the burner Water-tube boiler designs are particularly suitable for high steam output requirements. Hence, their use is mainly preferred in industries for various types... The water tube boiler diagram is shown below, and these two drums are associated via two tubes such as downcomer and riser. At first, the water is supplied into the steam type drum with the help of a water pump. Whenever the fuel is burned, then hot gases will be generated that are permitted to...
