L110 wiring diagram. I have a John Deere, Model L110, S/N: GLX110A102889 and need a wiring diagram. Do you know where I can get a free copy as John Deere wants a lot of money for one. I need it to start trouble shooting the safety switch circuits. Thank you. Hi! RAGDOG007, welcome to AMHD :) I found this in another thread. l110 john deere parts diagram is among the photos we found on the internet from reputable resources. We tend to explore this l110 john deere parts diagram pic in this post simply because based on info coming from Google engine, It is one of many top rated searches key word on google. And we also consider you arrived

Here is the info for the deck belt from JD Parts: Part Details Part Number: GX20072 Part Price: 36.58 USD Description: BELT, 42" MOWER DRIVE EO018 Specification Weight 0.64 LBS 0.29 Kg Belt Section HA Effective Length 103.740 IN Width 0.500 IN Thickness 0.350 IN Angle 32 Material Spec PREM

John deere l110 belt diagram

John Deere D170 Belt Replacement. John Deere D170 Belt Routing. John Deere E100 Belt Diagram. John Deere Ztrak 737 Belt Diagram. John Deere Ztrak Belt Diagram. John Deere D105 Belt Diagram. John Deere Ztrak Pro Belt Diagram. John Deere L110 42 Deck Belt Diagram. John Deere L130 Deck Belt Diagram. L110 John Deere Belt Diagram. Since I didn't know which belt you were replacing, I believe that giving you this link should be the best way to solve your problem. Here is the. John Deere 42" Decks Parts for L, L, L, L, L, L, L Riding lawn tractors. John Deere 42 Deck Drive Belt - GX, 6, GX, V-. M Picture Note: Inch mower deck is used for photo ... I took the deck off my john deere l130 today to sharpen the blades like i have so many times before but this time i forgot how the belt goes back on. New john deere gx20006 transmission belt. John deere l120 l130 deck parts diagram image ref part description stock price add to cart notes. Measure 2258 cm long x 13 cm wide x 09 cm thick.

John deere l110 belt diagram. John Deere Parts Lookup -John Deere-L110 Lawn Tractor (With 42-IN Mower Deck) Material Collection System -PC9289 Tightening the belt on a John Deere L110 Tractor. This is an easy repair for a slipping or squeaking belt. By How-to Bob. John Deere Mower Deck Drive Belt Tightener Arm - GY20059 (5) $25.34. Mower Deck Drive Belt is rated out of 5 by Rated 3 out of 5 by Baylor81 from The John Deere Belt works and is a go replacement The John Deere Belt works and is a go replacement for the original one that broke while mowing the lawn/5(10). John Deere L110 Parts The John Deere L110 was produced from 2003-2004 and came equipped with a Hydrostatic drive transmission, 42" Mower Deck and 17.5hp Briggs Engine. Regular Maintenance should be performed on the L110 every 50 hours and should include Spark Plug, Air Filter, Oil Filter with 1.5qts oil and sharpen or replace mower blades.

And find more John Deere information about your lawn mower from our parts catalogs, maintenance & repair sheets, do it yourself videos, and more. Aug 15, · SOURCE: need mower deck belt diagram for L John Deere I have found the manual at JD's website. Click the link and scroll down in the left . These John Deere Lawn Tractor Parts may include: Tune Up Kit, Spark Plug, Mower Blades, Traction Drive Belt, Transmission Belt, Mower Drive Belt, Battery, and Air Filters. If you need help finding John Deere Lawn Tractor Parts Search Using Weingartz Illustrated Diagrams to view an illustrated diagram or call us at 1-855-669-7278. John Deere L120 Mower Deck Belt Diagram. John Deere L120 Belt Diagram 48 Inch. John Deere L120 Belt Routing Diagram. John Deere L120 Snowblower Belt Diagram. John Deere L120 Transmission Drive Belt Diagram. John Deere D130 Deck Belt Diagram. John Deere L130 Deck Belt Diagram. John Deere L110 42 Deck Belt Diagram. Here is the. Tightening The Belt On A John Deere L Tractor · John Deere 42c Mower Deck Belt Diagram · John Deere La · John Deere La Drive. John Deere 42" Decks Parts for L, L, L, L, L, L, L Riding lawn tractors. John Deere 42 Deck Drive Belt - GX, 6, GX, V-. Lawn mowing can be a joy or a chore depending on the condition of your lawn mower.

Posts Related to John Deere L130 Deck Belt Diagram. John Deere L110 Deck Belt Diagram. John Deere La145 Deck Belt Diagram 42 48 inch Mower Deck Belt Made with Kevlar Compatible with John Deere L105 L107 L108 L110 L111 L118 L120 L130 GX20006. 3.6 out of 5 stars. 4. $12.99. $12. . 99. Get it as soon as Wed, Oct 27. FREE Shipping on orders over $25 shipped by Amazon. tipped pcbn inserts in 55 degree diamond shape D for hard turning ferrous metals of cast iron and hardened steel, the cbn insert cutting edges are made with polycrystalline cubic boron nitride, indexable inserts with cbn tips are precision cutting tools, which are used in cnc fine finish machining and turning roller, bearing, pumps, automobile brake disk, aircraft jet engine. In this video i show how to route the deck belt on a 42" John Deere 100 series 42" deck. This video applies to the L 100 and LA 100 Series and D 100 Series 2...

How to replace a transmission drive belt on John Deere L 130 lawn tractor mower

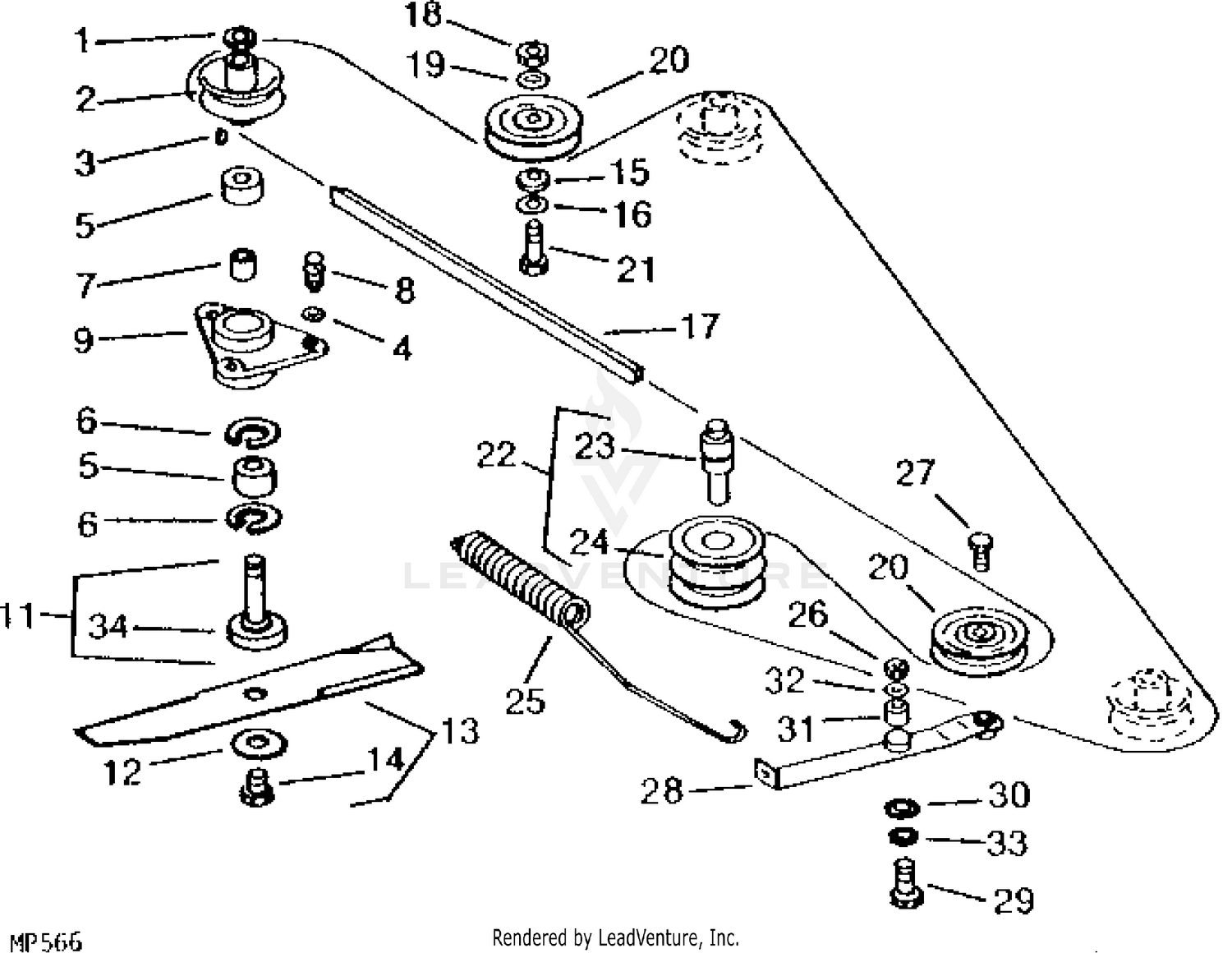

Description: John Deere La150 Lawn Tractor Parts throughout L110 John Deere Parts Diagram, image size 600 X 600 px, and to view image details please click the image.. Truly, we have been remarked that l110 john deere parts diagram is being one of the most popular issue right now. So that we attempted to find some terrific l110 john deere parts diagram graphic for you.

Amazon.com : John Deere Complete 42" Mower Deck for LA105 ...

John Deere AG, Lawn & Garden and CWP Equipment Parts Search. John Deere parts lookup tool and diagram is an incredible online source. It is a complete catalog that shows you detailed parts diagrams of every part of your machine. This online parts catalog is robust and easy to use. Searching for your John Deere parts online has never been easier.

John Deere Riding Lawn Mower Belt Diagram | Outlet www ...

John deere L110 deck belt diagram. The belt diagram for this riding mower?? Can you please e-mail me a copy of the l110 belt diagram also. I took it apart and I am putting the belt on wrong. A little better search would have gotten you this picture.

Pin on Lawn mower repair

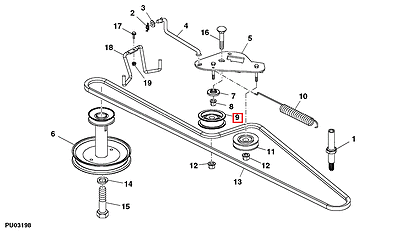

L110 John Deere Belt Diagram l deck belt diagram | Complete 42" Mower Deck for LA, LA, LA, L,L, and More. John Deere Complete Mower Deck for and. Removing or Installing Mower Drive Belt at Engine Drive Sheave ( cm (48 in.) To install the belt on the drive sheave, rotate idler sheave nut clockwise to.

John Deere L&G Belt Routing Guide | My Tractor Forum

I Need A Wiring Diagram For Deere D110 Riding Mower. John Deere 100 Series Wiring Diagram My Wiring Diagram 53063b John Deere Excavator Wiring Diagram Wiring Resources D100 Mower Belt Diagram John Deere D105 Drive Belt Diagram How To Bagikan Artikel ini Belum ada. John Deere L100 L110 L120 L130 Lawn Tractors Repair Manual Pdf.

John Deere L&G Belt Routing Guide | My Lawnmower Forum

John Deere L110 (42" Deck) Riding Lawn Mower Replacement Belt Original Equipment Manufacturer John Deere OEM Part Number GY20570 Machine Riding Lawn Mower Model L110 (42" Deck) Belt Type 4LK/AK Aramid VBG Replacement Id APPL672696 Technical Specifications: (Inches) (mm) Outside Circumference 104.00 2641.60 Top Width 0.50 12.70 Belt Depth 0.3125

John Deere L&G Belt Routing Guide | My Lawnmower Forum

John Deere 42-inch Mower Deck Drive Belt and Idler Kit - GX20072KIT1. (58) $66.33. Usually available. Add to Cart. Quick View.

L110 - TRACTOR, LAWN AND GARDEN MOWER DECK (REPLACEMENT) EPC ...

Buy Genuine OEM John Deere parts for your John Deere L110 Lawn Tractor (With 42-IN Mower Deck) Material Collection System -PC9289 and ship today! Huge in-stock inventory of OEM John Deere parts.

Belt Routing John Deere L110 | Shop www.spora.ws

Lapanko John Deere GX20006 Mower Transmission Drive Belt L110 L118 L120 L236 L130. 4.4 out of 5 stars. 198. $16.95. $16. . 95. Get it as soon as Fri, Sep 17. FREE Shipping on orders over $25 shipped by Amazon.

New D100- belt very loose...please help. | Green Tractor Talk

I took the deck off my john deere l130 today to sharpen the blades like i have so many times before but this time i forgot how the belt goes back on. New john deere gx20006 transmission belt. John deere l120 l130 deck parts diagram image ref part description stock price add to cart notes. Measure 2258 cm long x 13 cm wide x 09 cm thick.

John Deere Parts Diagrams, John Deere L110 Lawn Tractor (With ...

L110 John Deere Belt Diagram. Since I didn't know which belt you were replacing, I believe that giving you this link should be the best way to solve your problem. Here is the. John Deere 42" Decks Parts for L, L, L, L, L, L, L Riding lawn tractors. John Deere 42 Deck Drive Belt - GX, 6, GX, V-. M Picture Note: Inch mower deck is used for photo ...
