Shown below is the Cu-Ni phase diagram (Figure 9.3a) and a vertical line constructed at a composition of 70 wt% Ni-30 wt% Cu. (a) Upon heating from 1300°C, the first liquid phase forms at the temperature at which this vertical line intersects the α-(α + L) phase boundary--i.e., about 1345°C. )-)- L + 3235 43 CLCo C Cu-Ni system Phase Diagrams: composition of phases At TA= 1320°C: Only Liquid (L) present CL= C0 ( = 35 wt% Ni) At TB= 1250°C: Both and L present At TD= 1190°C: Only Solid ( ) present C = C0( = 35 wt% Ni) C L = C liquidus ( = 32 wt% Ni) C = C solidus ( = 43 wt% Ni) 18 • Rule 3:If we know T and Co, then we know:

Cu-Ni phase diagram with labels in Greek: Date: 9 October 2007: Source: self-made with info from E. A. Brandes and G. B. Brock, Smithells Metals Reference Book, 7th ed., Butterworth-Heinemann, Oxford 1998. Author: Metallos

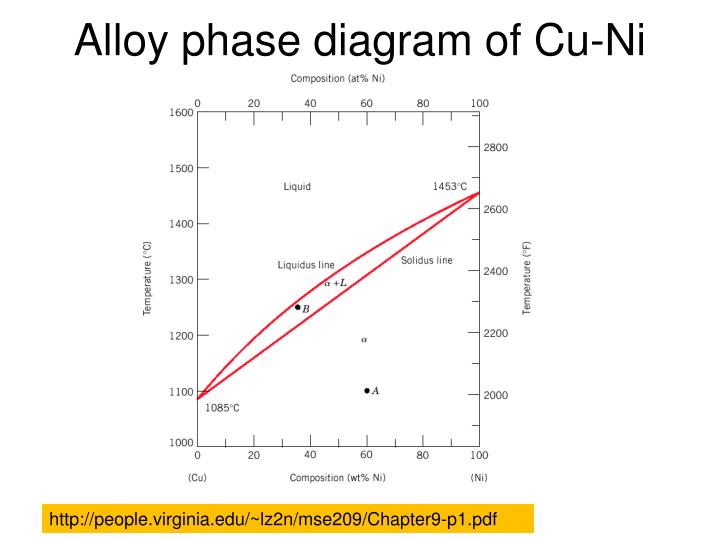

Cu ni phase diagram

The Cu-Ni nanoalloy phase diagram was calculated by the CALPHAD method. • The Cu-Ni nanoparticles (NPs) were prepared from metal precursors. • NPs were characterized by various methods. • The experimental methods DLS, HRTEM, SEM, XRD, IR, DSC were applied. Abstract Example: Cu-Ni phase diagram (only for slow cooling conditions) Liquidus line: the line connecting Ts at which liquid starts to solidify under equilibrium conditions Solidus: the temperature at which the last of the liquid phase solidifies Between liquidus and solidus: P =2. Chapter 8 9 To generate a new Sn-Cu-Ni phase diagram based on reliable experimental data including four liquidus lines at 240 °C, 250 °C, 260 °C, and 270 °C. Characterize the invariant (or invariants) line for the equilibrium between a liquid phase with two IMCs Corroboration of Attainment of Homogeneous Liquid During Fast Quenching

Cu ni phase diagram. The thermodynamic calculation of phase equilibria in the Cu-Ni-Si alloy system was carried out using the CALPHAD method. The calculations show that there are three two-phase areas and two three ... This video explains binary phase diagrams, specifically the Cu-Ni System. For further studies: visit https://www.doitpoms.ac.uk/tlplib/phase-diagrams/printal... The Cu-Ni and binary phase diagram (Figure 10.3) is the simplest type of binary phase diagrams for two metals. Figure 10.3 shows that Cu and Ni are mutually soluble at room temperature throughout the entire range of compositions. The Cu-Ni phase diagram (Figure 9.3a) is shown below; the point labeled "G" represents the 63.8 wt% Ni-36.2 wt% Cu composition at 1250°C. As may be noted, point G lies within the α phase field. Therefore, only the α phase is present; its composition is 63.8 wt% Ni-36.2 wt% Cu.

The Cu-Ni nanoalloy phase diagram was calculated by the CALPHAD method. • The Cu-Ni nanoparticles (NPs) were prepared from metal precursors. • NPs were characterized by various methods. • The experimental methods DLS, HRTEM, SEM, XRD, IR, DSC were applied. Abstract diagrams. The binary phase diagram is used for system of two components and its classifications depend on number of phases as; isomorphous contain system with two phases such as Cu - Ni system. The... (a) Cu-Ni Let us begin with the simplest of all metallic binary systems; one in which there is complete solubility (mixing and complete miscibility of atoms) in both the liquid and solid states. Alloys of copper (Cu) and nickel (Ni) are an example of such a system. The phase diagram for Cu-Ni is shown in Figure 1203.01.02, where the diagram Phase Diagrams • Indicate phases as function of T, Co, and P. • For this course:-binary systems: just 2 components.-independent variables: T and Co (P = 1 atm is almost always used). • Phase Diagram for Cu-Ni system Adapted from Fig. 9.3(a), Callister 7e. (Fig. 9.3(a) is adapted from Phase Diagrams of Binary Nickel Alloys , P. Nash

In this work, phase relations and thermal stabilities of equilibrium phases in the Cu-Ni-S system have been reviewed. The calculated phase diagram of Cu-N system has been validated. At T > 630 K, in the N-rich corner, large scatter in data has been observed and discussed in detail. Phase Diagram. このサイトを検索 ... Cu-Ni. Data from RICT-Sol alloy database ver.1.0. Sign in | Recent Site Activity | Report Abuse | Print Page | Powered By Google Sites ... Fig. 1 shows the Cu-Ni equilibrium diagram [3]. Alloys of the two metals form a continuous series of solid solutions having a face-centred cubic lattice, i.e. the Cu-Ni system exhibits complete solubility in both liquid and solid states. The equilibrium diagram is therefore very simple. Cu Ni phase diagram Isomorphous Binary Phase Diagram Phase diagram Cu Ni system. Cu ni phase diagram isomorphous binary phase diagram. School Taibah University; Course Title ME 221; Uploaded By Aliahmmad. Pages 98 This preview shows page 13 - 24 out of 98 pages. ...

28 Cu Ni Phase Diagram - Wiring Database 2020

English: Cu-Ni phase diagram. Polski: Wykres fazowy Cu-Ni. Date: 28 March 2011: Source: Own work: Author: Joanna Kośmider: Permission (Reusing this file) Public domain Public domain false false: I, the copyright holder of this work, release this work into the public domain. This applies worldwide.

13 Cu Ni Phase Diagram - Free Wiring Diagram Source

We have examined isomorphous phase diagrams, and used the example of the Cu-Ni phase diagram. In this module we will examine eutectic phase diagrams. A eutectic system has two components, and they have limited solubility. Upon cooling, the liquid will transform into two mixed solid phases. We will use the Pb-Sn phase diagram as an example.

Solved: 3. The Diagram Below Shows The Cu-Ni Phase Diagram ...

Cu-Ni-Sn description. 2. Phases and models Fig. 1 shows calculated phase diagrams for binaries Cu-Ni [21]andCu-Sn[35]. They agree well with the experimental phase equilibrium data as presented in these studies. The Ni-Sn system was recently assessed by Ghosh [32], who treated the liquidandfccphases with the

Cu Ni Phase Diagram - exatin.info

Phase Diagram Index A phase diagram shows the range of existence of phases in materials with more than one component. The binary phase diagram shown for the copper-nickel alloy indicates that these materials can form both liquid and solid solutions over the full range of composition from Cu to Ni.

Phase diagram of the Al-Cu-Mg-Ni-Si system in the range of ...

Phase diagrams are classified according to the number of component present in a particular system. Phase diagram -Useful information ... For isomorphous system - E.g.: Cu-Ni, Ag-Au, Ge-Si, Al 2 O 3-Cr 2 O 3. Hume-Ruthery conditions Extent of solid solubility in a two element system can be predicted based on Hume-Ruthery conditions.

PPT - From J.R. Waldram "The Theory of Thermodynamics ...

Phase Diagram for Cu-Ni. Move the mouse over the phase diagram to view temperature and composition at any point. View micrographs for the Cu-Ni system. List all systems with phase diagrams. 2004-2022 University of Cambridge. Except where otherwise noted, content is licensed under a

Solved: In The Cu-Ni Phase Diagram Use Gibbs Phase Rule To ...

Sep 27, 2007 — Calculation of the Cu-Ni phase diagram between 1000 and 1600°C. Exercise 1: Selecting the thermodynamic functions (TDB and GES ...33 pages

_DSC2991

#modimechanicalengineeringtutorials, #mechanicalmagicmechanicallearningtutorials,Welcome to My YouTube Channel MODI MECHANICAL ENGINEERING TUTORIALS.This ch...

Sulphide phase relations in the 1atm Fe-Ni-S, Cu-Fe-S, and ...

The Cu-Ni phase diagram from [1991Cha, 1994Cha] Figure 1 from evaluation report: Cu-Ni Binary Phase Diagram Evaluation. Cite this page. Citation Phase diagram available to subscribers; If you are having trouble in accessing SpringerMaterials remotely during the COVID-19 pandemic,

Nickel-Chromium (Ni-Cr) Phase Diagram | Material science ...

0. Phase Diagram 1. Overview 2. Heating & Pouring 3. Solidification and Cooling 2 0. Alloys and Phase Diagram • Pure Metals • Alloys - Solid solutions • Substitutional Solid Solution (Zn/Cn and Cu/Ni) - Atomic radii is similar - Lattice type is the same • Interstitial Solid Solution - Smaller atoms are interstitially located ...

Solved: Cu-Ni Phase Diagram Cu-Ni Phase Diagram 3. A 65 Wt ...

Answer: Yes, the Cu-Ni phase diagram exhibits a miscibility gap below roughly 600 K. This has been calculated theoretically and measured experimentally: Image source. Thermodynamically, a miscibility gap is almost inevitable in metal systems, which have positive enthalpies of mixing. The free e...

4. Ni-Al phase diagram [27]. | Download Scientific Diagram

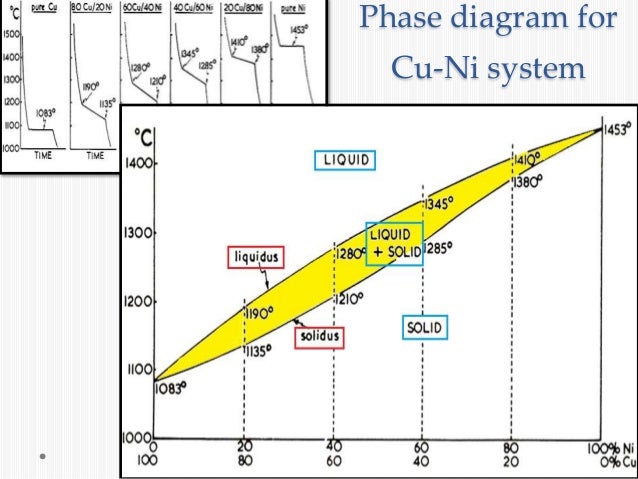

Phase Diagrams • Indicate phases as a function of T, C, and P. • For this course:-binary systems: just 2 components.-independent variables: T and C (P = 1 atm is almost always used). Phase Diagram for Cu-Ni system Fig. 11.3(a), Callister & Rethwisch 9e. (Adapted from Phase Diagrams of Binary Nickel Alloys, P. Nash, Editor, 1991. Reprinted
