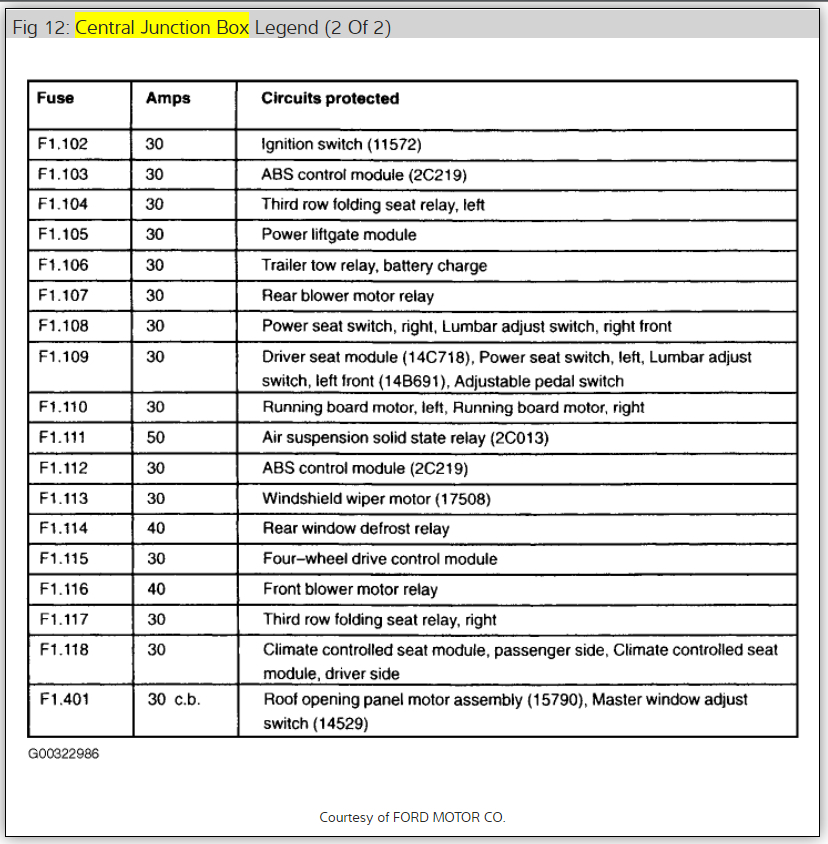

1999 Lincoln Navigator Central junction Fuse Box Diagram. Fuse Panel Layout Diagram Parts: transmission, trailer tow battery charge relay, 4WABS module,heated seat module, ignition switch, heated grid relay, delay relay, central junction box, heated oxygen sensor, park lamp relay, auxiliary... Re: 2000 lincoln navigator fuse box diagram. You find here (link below) fuse box diagram and description for Lincoln Navigator First Generation (1998 - 2002) Lincoln Navigator fuse box Auto Genius.

1998 navigator fuse box wiring diagram database 05 e250 fuse diagram wiring. Power mirror switch, driver side power seat memory, driver side View and download lincoln navigator 2000 owner's manual online. Our service department is available 8am to 6pm (est) to provide information on lincoln...

2000 lincoln navigator fuse box diagram

Diagram Fuse Box 2000 Lincoln Navigator Air | 2000 Lincoln ... from i.fixya.net. 1 people found this helpful. Multiple key fobs can be programmed to instruct your lincoln navigator to adjust a number of features, even as you approach, that have been specifically set for different drivers. Lincoln Navigator 1997 Main Fuse Box Block Circuit Breaker. Lincoln Navigator Ls 2003 - 2006. 2000 Lincoln Navigator Fuse Panel Diagram. The video above shows how to replace blown fuses in the interior fuse box of your 2000 Lincoln Navigator in addition to the fuse panel diagram location. Electrical components such as your map light, radio, heated seats, high beams...

2000 lincoln navigator fuse box diagram. If you look for a fuse box diagram, timing belt diagram, or maybe wiring diagram - this is a place for you. Fuse Box Diagram Lincoln Navigator 2006 Wiring Diagram T2 Lincoln navigator 2008 fuse box diagram. Description : 2000 Lincoln Navigator: 2004 lincoln navigator fuse box diagram. Then open the document and go to page 135. It will let you download a pdf version to your computer. Fuse box diagram (location and assignment of electrical fuses and relays) for Lincoln Navigator (1998, 1999, 2000, 2001, 2002). In this article, we consider the first-generation Lincoln Navigator, produced from 1998 to 2002. Here you will find fuse box diagrams of Lincoln Navigator 1998, 1999... Fuse box diagram (location and assignment of electrical fuses and relays) for Lincoln Navigator (1998, 1999, 2000, 2001, 2002). Свернуть Ещё. Комментарии отключены.

Fuse Box Diagram Lincoln Navigator 1998. Lincoln Navigator Ls 2003 - 2006. Often the finishes from the 2000 Lincoln Navigator Fuse Box Diagram s will likely be inserted into an assembly board In line with a certain layout, after which are going to be included that has a protecting sleeve to kind the... Find this Pin and more on diagram by David Dryer. Fuse box diagram (location and assignment of electrical fuses and relays) for Ford Expedition (UN93; 1997, 1998, 1999, 2000, 2001, 2002). Alex L. We have the following 2000 Lincoln Navigator manuals available for free PDF download. You may find documents other than just manuals as we also make available many user guides Diagram Fuse Box 2000 Lincoln Navigator Air Diagram Fuse Box 2000 Lincoln Navigator Air Conditioner Clutch. Lincoln navigator pcm 2002 fuse box/block circuit breaker diagram for 2000 lincoln navigator fuse panel diagram, image size here is a picture gallery about 2000 lincoln navigator fuse panel diagram complete with the description of the image, please find the image you need.

Lincoln Navigator - fuse box diagram - primary battery fuses. Relays are located in the power distribution box and should be replaced by qualified Lincoln Navigator - fuse box diagram - engine mini fuse box. WARNING: Terminal and harness assignments for individual connectors will... 12 posts related to 2000 Lincoln Navigator Fuse Box Diagram. Lincoln navigator 2003 2006 fuse box diagram. You can also find other images like lincoln wiring diagram lincoln parts diagram lincoln replacement parts lincoln 03 Navigator Fuse Diagram Free Download Wiring Diagrams. Fuse Panel Diagram 2000 Lincoln Ls Interior Wiring Diagram. ...Lincoln Navigator Wiring Diagram Wrg 6786 2000 Lincoln Navigator Fuse Box can be a beneficial inspiration for those who seek an image according to specific categories like Wiring Diagram. 2000 Lincoln Navigator Wiring Diagram 2000 Lincoln Continental 4 6l Engine Diagram Lan1 Repeat11.

Passenger Compartment Fuse Box. No. '99: Climate Mode Switch (Blower Relay), EATC (via fuse 7), EATC Blower Relay '02: EATC Module, EATC Blower/Flasher Relay, Climate Control Selector Switch , Feeds Print. Fuse Box Diagram Lincoln Navigator (1999, 2000, 2001, 2002). Ads. Info.

Read Or Download Lincoln Navigator Fuse Diagram For FREE Fuse Diagram at DIAGRAMTHEFALL.ALBERGOTREPOZZI.IT. What Is The Fuse Diagram For A 2001 Lincoln Navigator. Lincoln Navigator 2004 Fuse Box Block Circuit Breaker.

Description : Lincoln Navigator Pcm 2002 Fuse Box/block Circuit Breaker Diagram for 2000 Lincoln Navigator Fuse Panel Diagram, image size Here is a picture gallery about 2000 lincoln navigator fuse panel diagram complete with the description of the image, please find the image you need.

Visio Rack Diagram Stencils. Veins In The Neck Diagram. Stihl Fc 110 Parts Diagram. 94 Jeep Cherokee Radio Wiring Diagram. Car Relay Diagram.

Fuse box diagram for 2003 Lincoln Navigator (click on image for larger view). If on the cover of box of safety locks you have not found the fuse box The first main free source of Lincoln fuse box diagrams, is to download the owner's manual of your car from an official website of the manufacturer.

Fuse box diagram (fuse layout), location, and assignment of fuses and relays Lincoln Navigator Mk1 (UN192) (1999, 2000, 2001, 2002), Checking and Replacing FusesFuses and circuit breakers protect your vehicle's electrical system from You are watching: 2000 lincoln navigator fuse box diagram.

PowerPoint 2000-Jeff Grisenthwaite 1999. GM Automatic Overdrive Transmission Builder's and Swapper's Guide-Cliff The Electrical Review- 1904. Fuse Box Diagram 1998 Lincoln Navigator. You could purchase guide fuse box diagram 1998 lincoln navigator or acquire it as soon as feasible.

You find here (link below) fuse box diagram and description for Lincoln Navigator First Generation (1998 - 2002). the fuse panel for the Lincoln Navigator 2003 is on the Passenger side, at your right foot. It's a rectangular panel in the right corner that pops off to reveal the fuse panel.

Lincoln navigator 1999 fuse box diagram. On a 2003 lincoln navigator : Fuse panel layout diagram parts: I am seeking to find where the fuse box for the 20 amp fuse for do you know where the fuel pump relay is on a 1995 lincoln continental or where i can view wiring diagrams for.

Lincoln Navigator - fuse box diagram - primary battery fuses. Relays are located in the power distribution box and should be replaced by qualified Lincoln Navigator - fuse box diagram - engine mini fuse box. WARNING: Terminal and harness assignments for individual connectors will...

Your complete owners manual ( 2000 lincoln navigator) can be downloaded by clicking here. Always verify all wires, wire colors and diagrams before car radio battery constant 12v+ wire: Here you will find fuse box diagrams of lincoln navigator 2003, 2004, 2005 and 2006, get information about the...

The fuse box is located driver side under the hood. What is the fuse box layout for a 2001 lincoln navigator. 2000 Ford Exp...

The video above shows how to replace blown fuses in the interior fuse box of your 2000 Lincoln Navigator in addition to the fuse panel diagram location. Electrical components such as your map light, radio, heated seats, high beams...

Lincoln Navigator 1997 Main Fuse Box Block Circuit Breaker. Lincoln Navigator Ls 2003 - 2006. 2000 Lincoln Navigator Fuse Panel Diagram.

Diagram Fuse Box 2000 Lincoln Navigator Air | 2000 Lincoln ... from i.fixya.net. 1 people found this helpful. Multiple key fobs can be programmed to instruct your lincoln navigator to adjust a number of features, even as you approach, that have been specifically set for different drivers.
